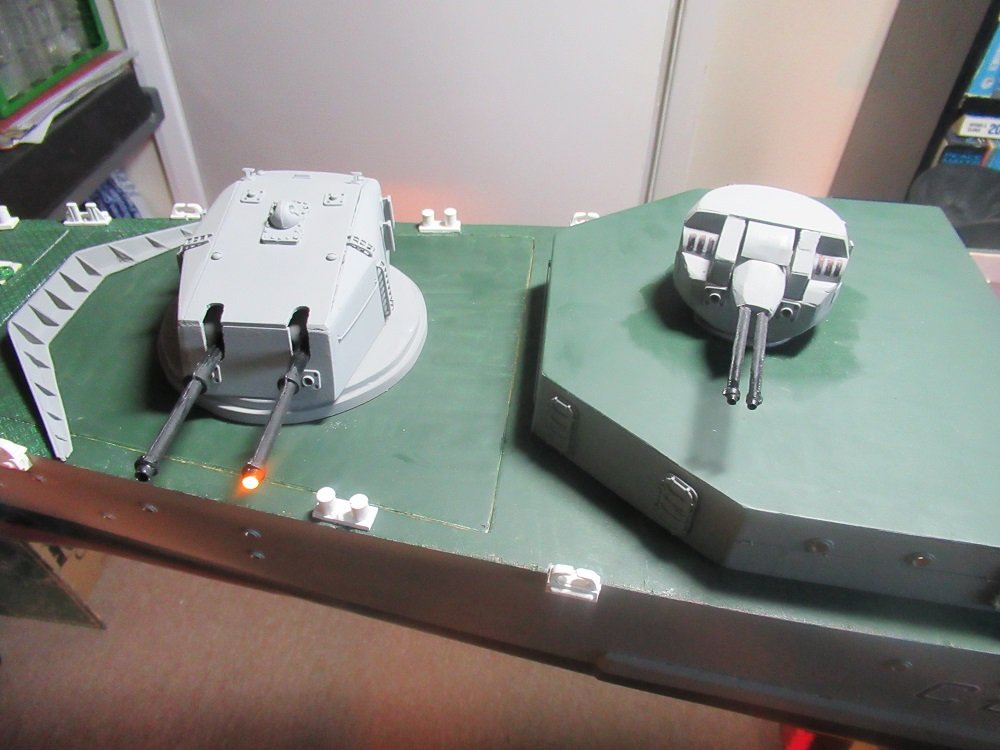

AN Here ive not elevated the guns to fire but if you look closely the gun flash can be seen



[BOATMAN]

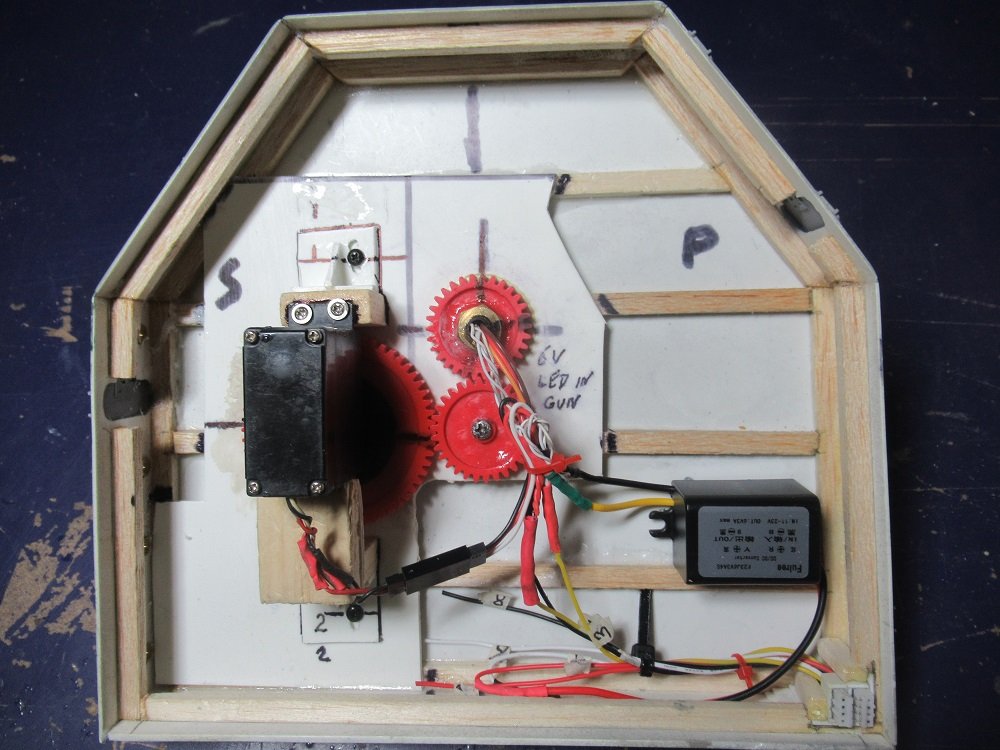

an here is the gearing shown to show how the 3 inch guns train



[Ron2]

HI Domer94 the R/C has 14 channels an the 10 working features off the twin cams well thats 24 workin features but remember they are not all bein used at the same time an two big 12 amp hr batts at 12V EACH so that 24 amphr worth of power in the hull power is avablie an to be honest i havnt counted them SO when i put her togeather again i will count how many FUNCKIONS THERE ARE propberly OK an remember all 4 workin radars only work off 2 servo motors so thats cut some power not needed instead of 4 motors AN REMEMBER I FITTED IN A PDB BOARD AS THAT ITS FUNCTION TO DISTRIUBETE POWER EVENLY THROUGHOUT THE SHIP AN SOON I'LL SHOW A PIC OF ALL THE THINGS WORKING
chrisb

Oi and I've put my p51 project on hold because I have to figure out how to power the landing lights!



[BOATMAN]

Oi and I've put my p51 project on hold because I have to figure out how to power the landing lights!

HI Ron now what scale is the p51 ? an how many lights do you want to fit sir ? an voltage ? an do you want them powered by batts or like i do by mains power ?
chrisb



[Ron2]

HI Ron now what scale is the p51 ? an how many lights do you want to fit sir ? an voltage ? an do you want them powered by batts or like i do by mains power ?
chrisb

It's an airfix 1/24. This is my first foray into lights. I think I bought 3a leds. The red is self blinking and I got the - let me get back to you tonight. I'll look everything I bought so far. I think pantherman do a ship with lights and that inspired me to give it a go.



[BOATMAN]

It's an airfix 1/24. This is my first foray into lights. I think I bought 3a leds. The red is self blinking and I got the - let me get back to you tonight. I'll look everything I bought so far. I think pantherman do a ship with lights and that inspired me to give it a go.

Ron2 could you start a thread on this with some pics of your leds an the plane kit so i can see whats what an well done for givin it a go
chrisb



[BOATMAN]

WELL Ron any more on your P51 with lights ?
chrisb



[BOATMAN]

i cant believe all the servos involved.. how many channels is your transmitter system? did you work out some other way of activating all the components?

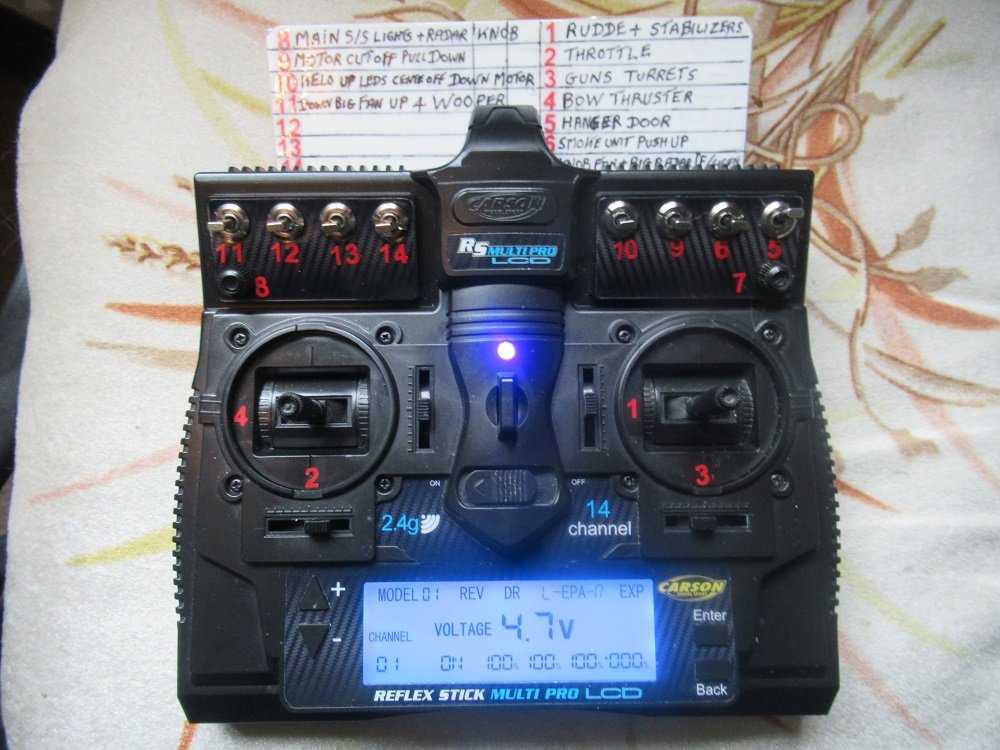

HI Domer94 here is my R/C transmitter that works my tiger an if you look closely at it you can see the channel numbers an the two knobs no' 7an 8 that work the 10 cam swithes so 24 workin features but may be more as some are doubled up off the same switches an look at the card as im still filling them in an only got up to no' 12 but later it would go higher in numbers
chrisb



[BOATMAN]

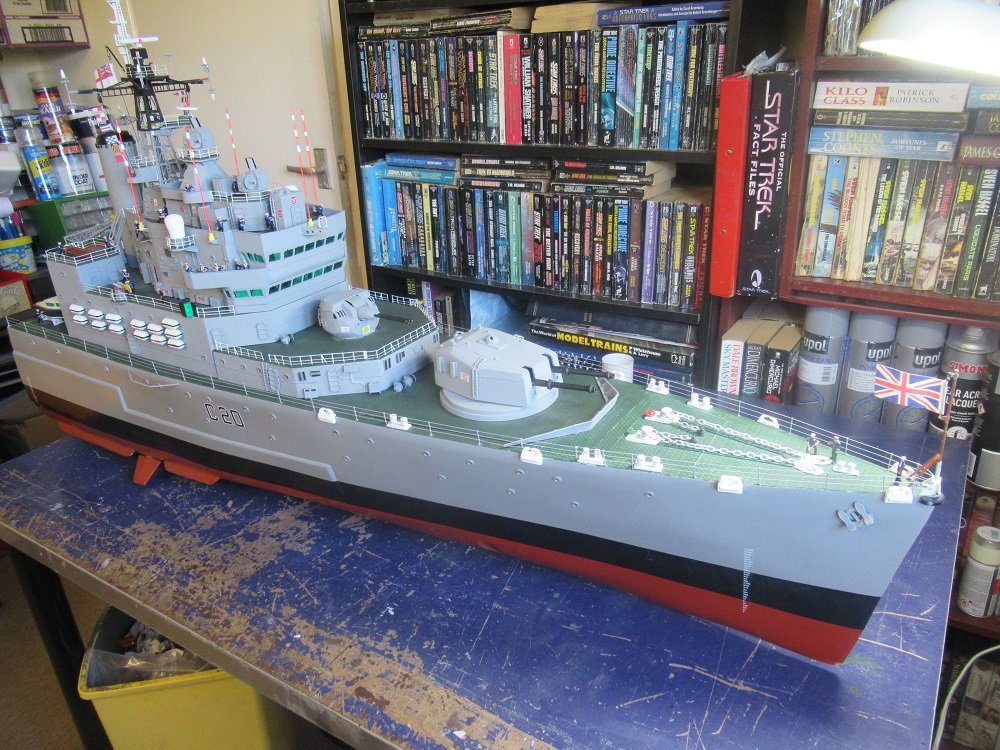

an more ship pics

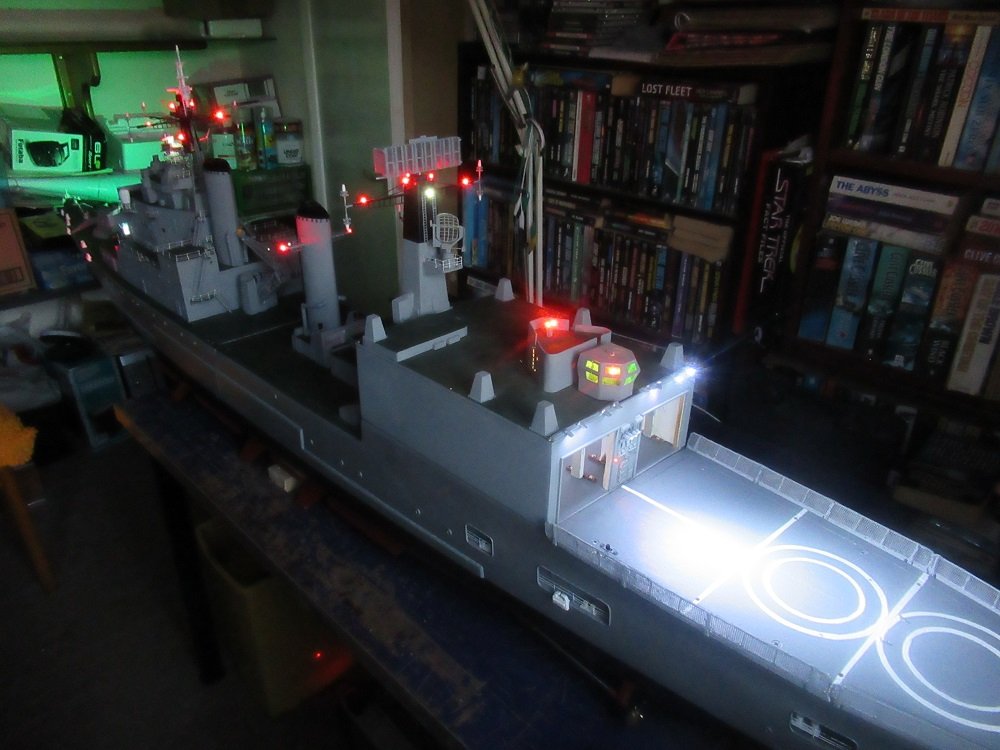

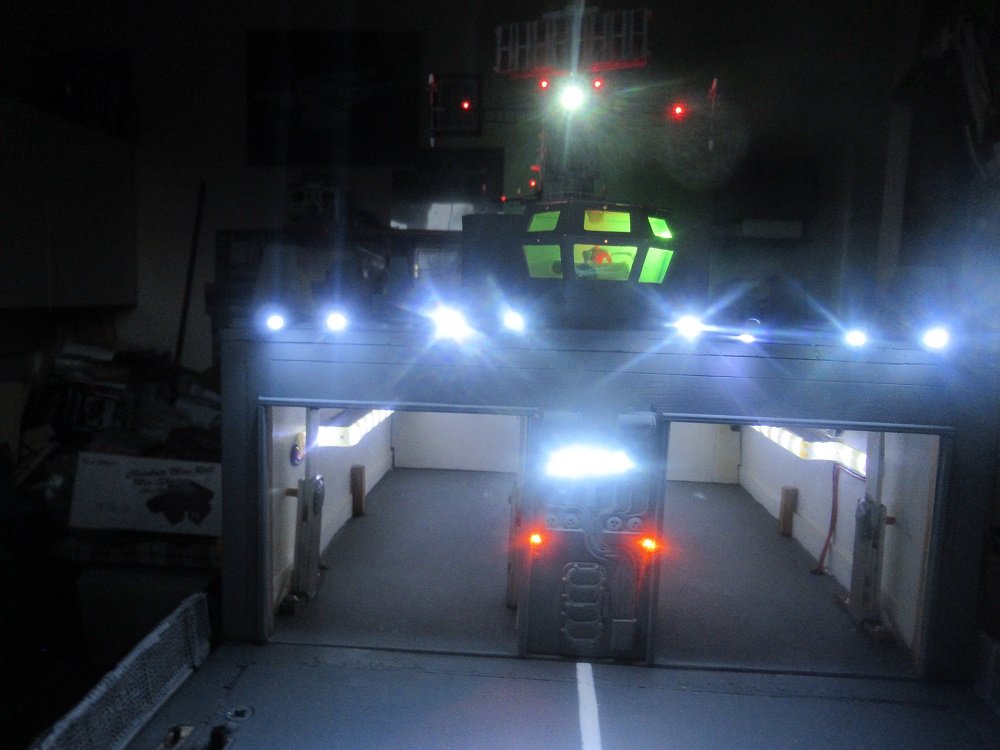

an in this pics ive lit up the flight deck but no seaking yet as i forgot to fit it on when talkin the pic but all the lights are goin

pic



[BOATMAN]

here a shot into the hangar bays which will have a seaking fitted in later on an the flightdeck flood lights an chopper control bubble



[BOATMAN]

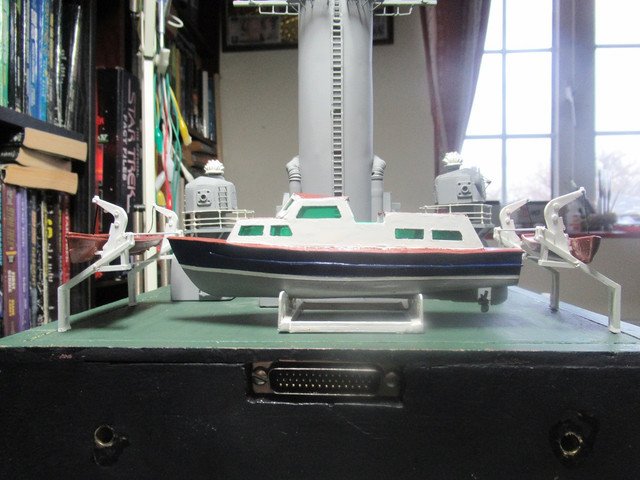

HERE Ive scratch built one of her 40 ft motor launches



[BOATMAN]

top angle view



[BOATMAN]

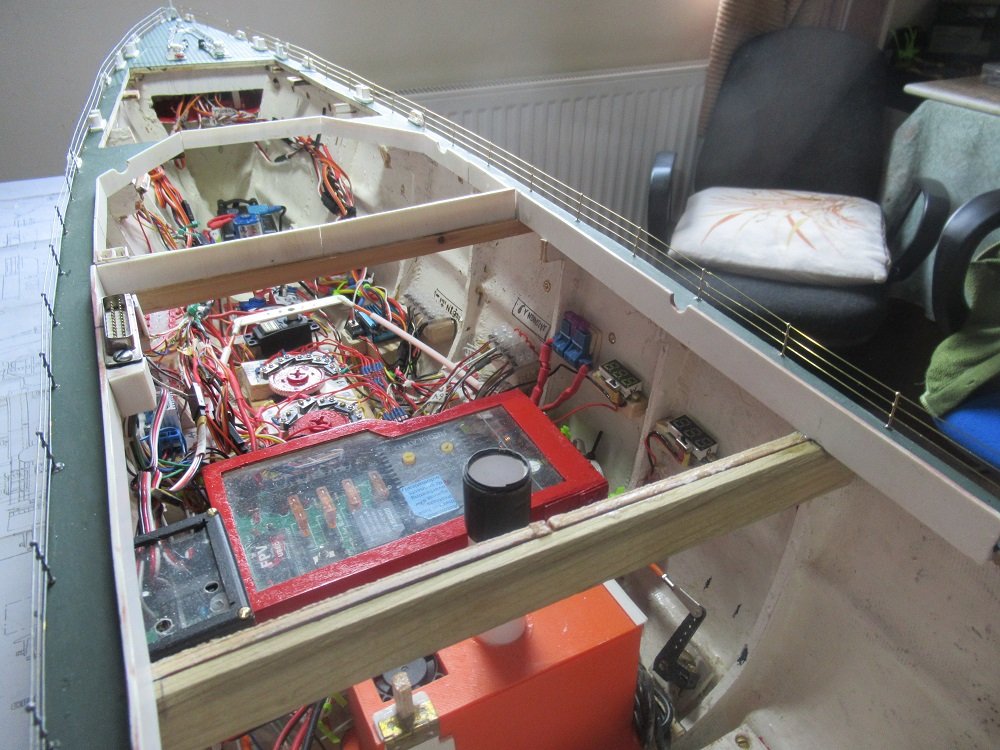

an a veiw of the eletronics in the bow section of the hull



[BOATMAN]

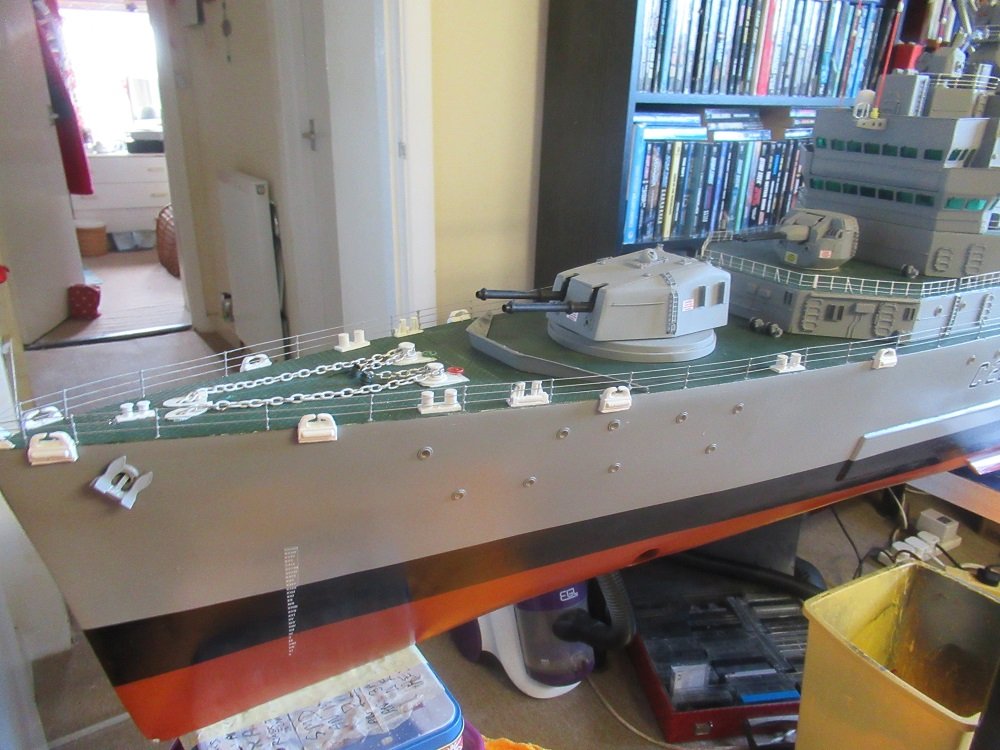

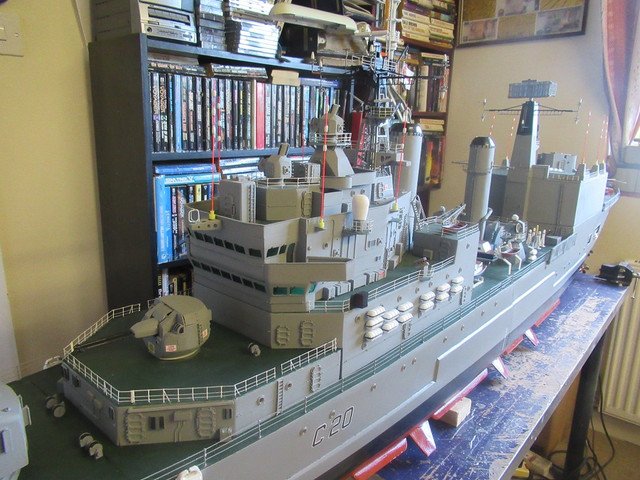

an all the storchins an railings fitted to the bow deck an fair leads an bollards



[BOATMAN]



[BOATMAN]

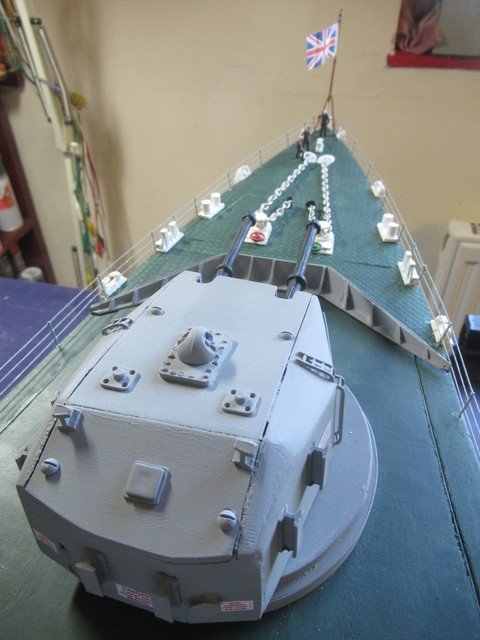

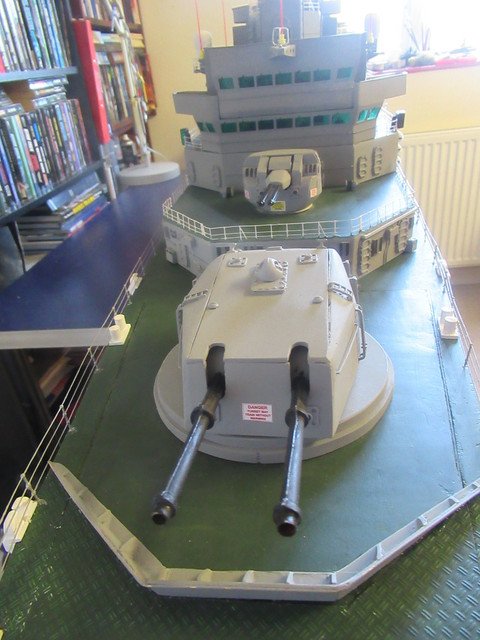

an warn

ing signs fitted to the turrret to warn the crew members to stand clear in case the turret turns with out warning an brake water sheild now fitted



[BOATMAN]



[BOATMAN]

AN all the above S/S all just unclips an lifts off for serviceing the radar motor an coolin fans an water smoke unit



[BOATMAN]

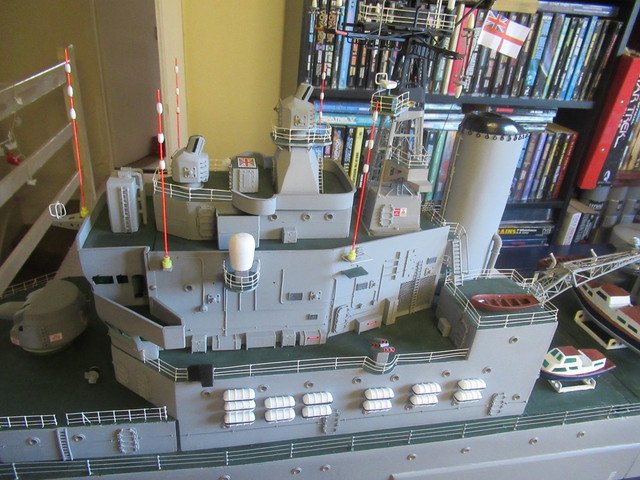

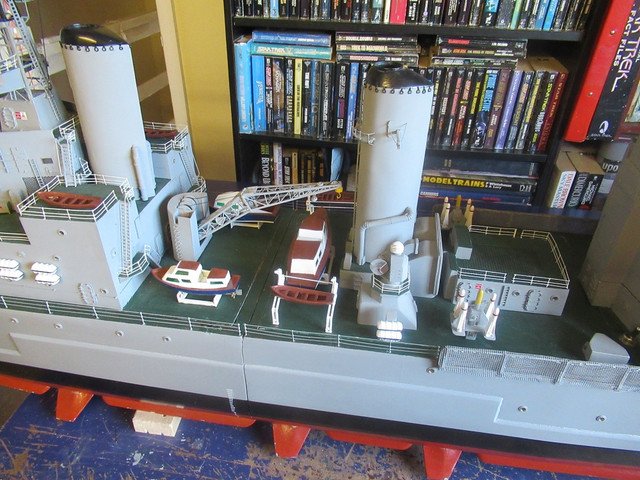

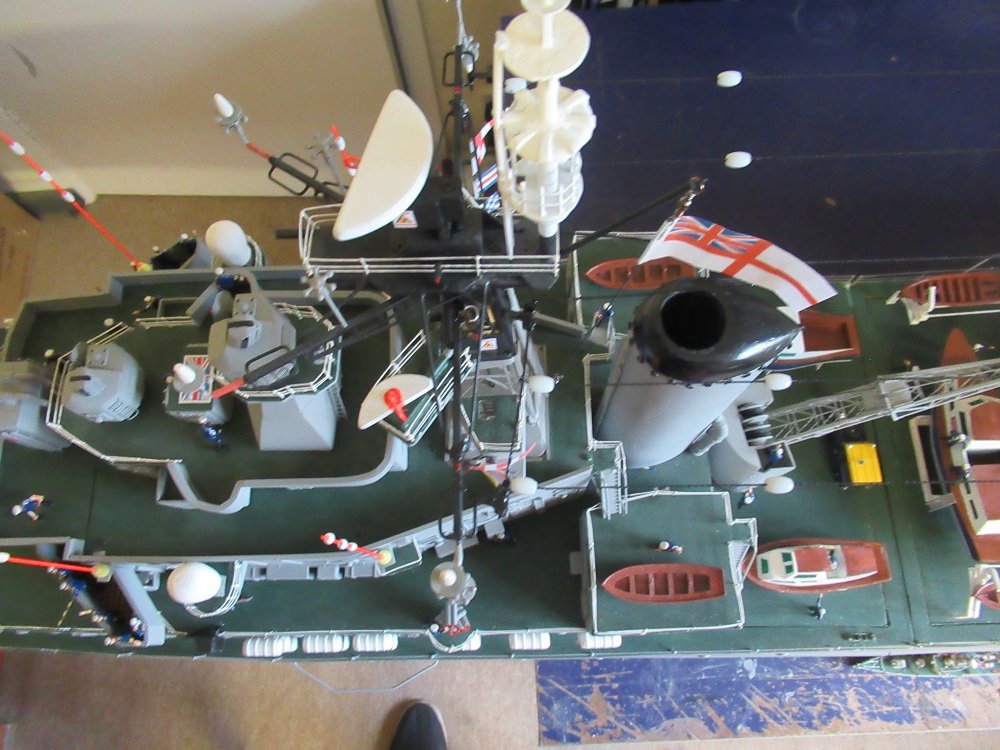

here a shot of the ships midway decking an fold up crane



[BOATMAN]

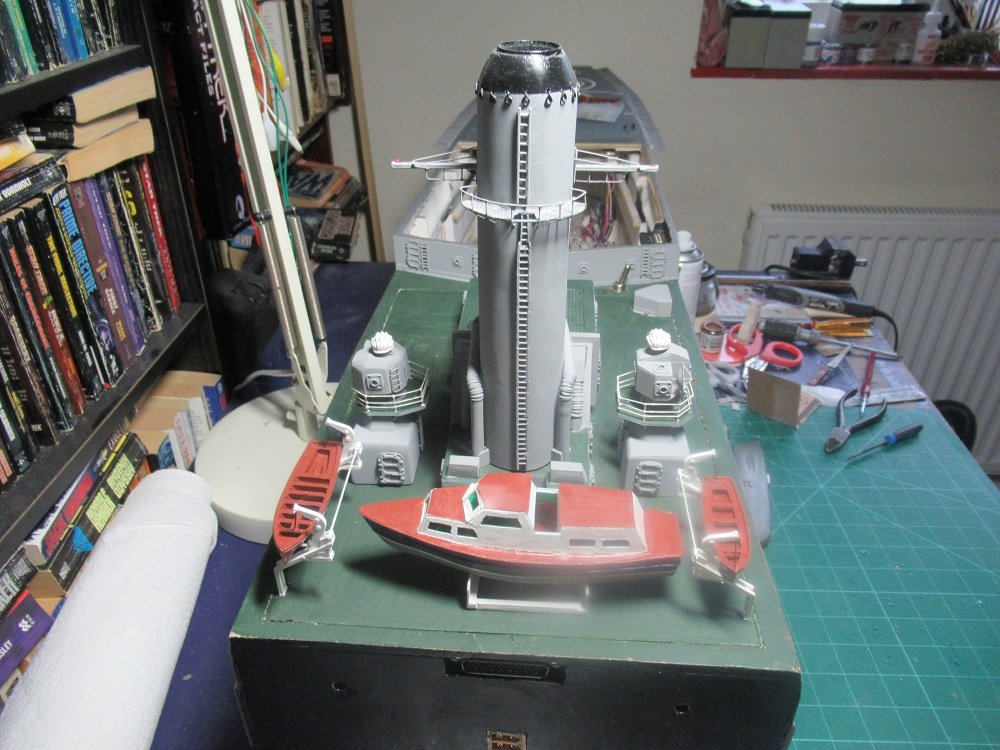

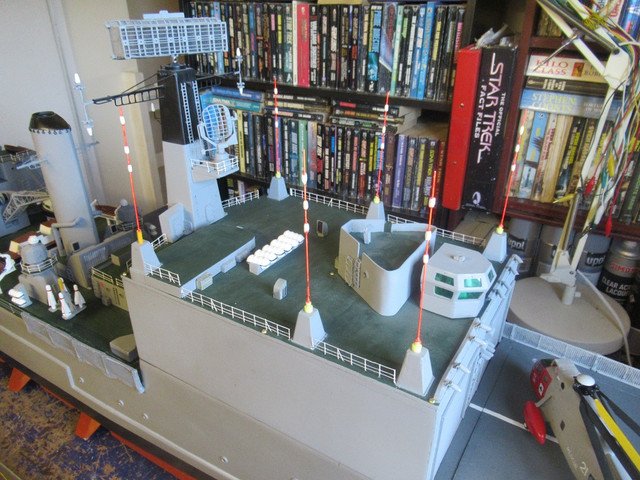

an here the fittings on top of the hangar bay an again it will all unscrew an lift off



[locomotive]

Im absolutely amazed by this build.



[BOATMAN]

Im absolutely amazed by this build.

WELL im glad you are Loco as yes a lot of other people like it too an im goin to put her in the big model show at the years end
chrisb



[BOATMAN]

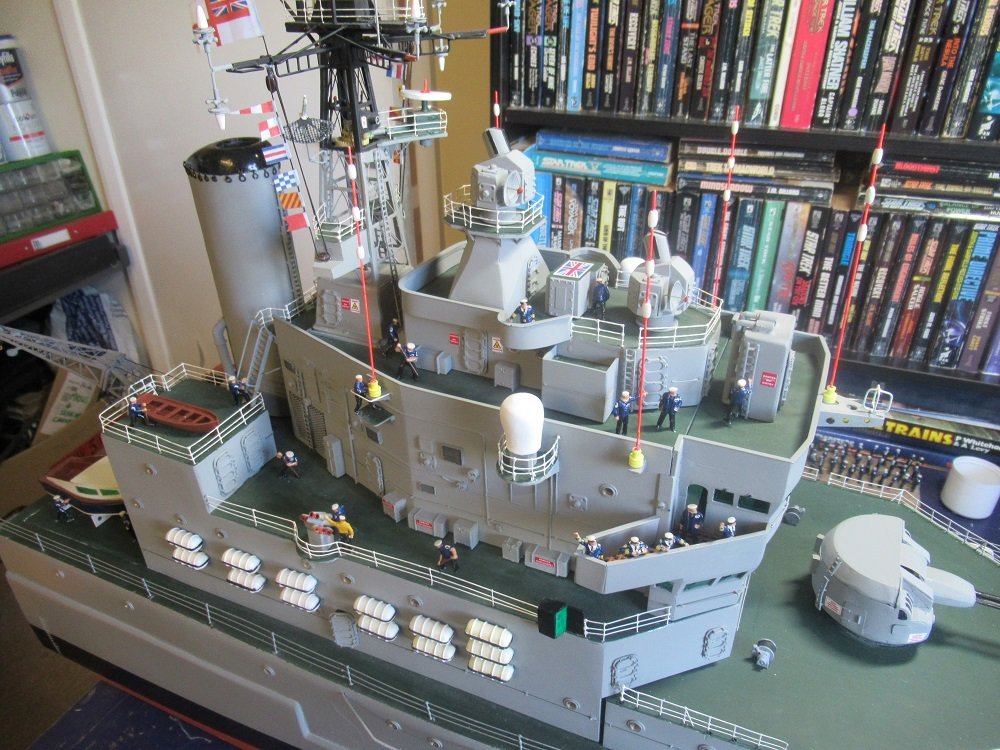

HI ALL well heres today offering of tiger build pics

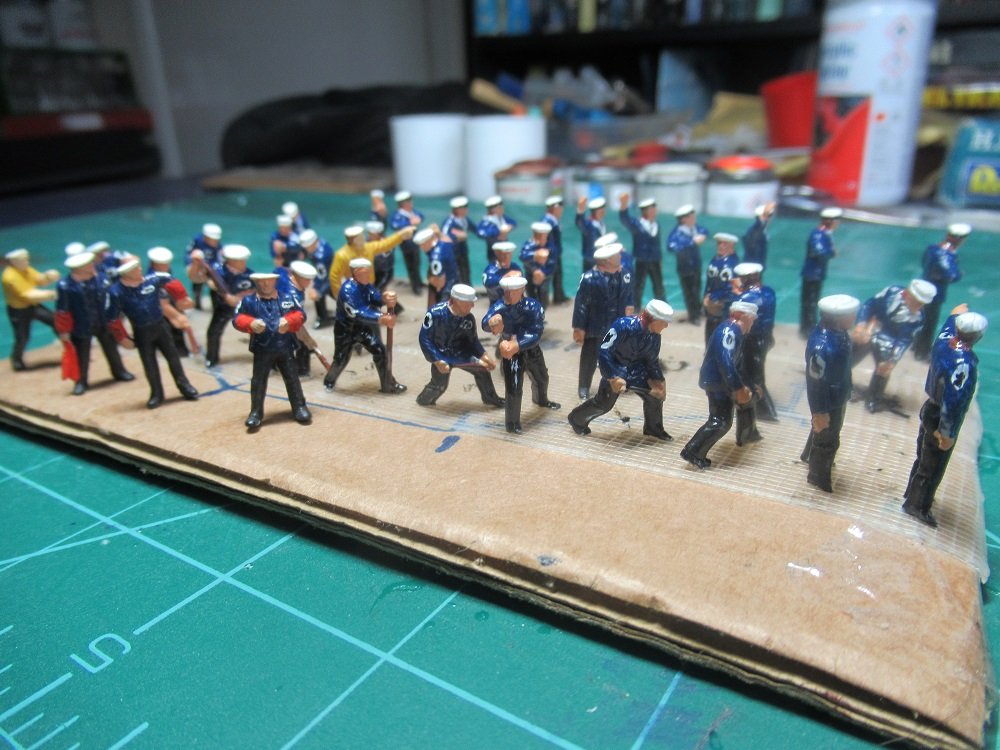

firstly the crew figures



[BOATMAN]

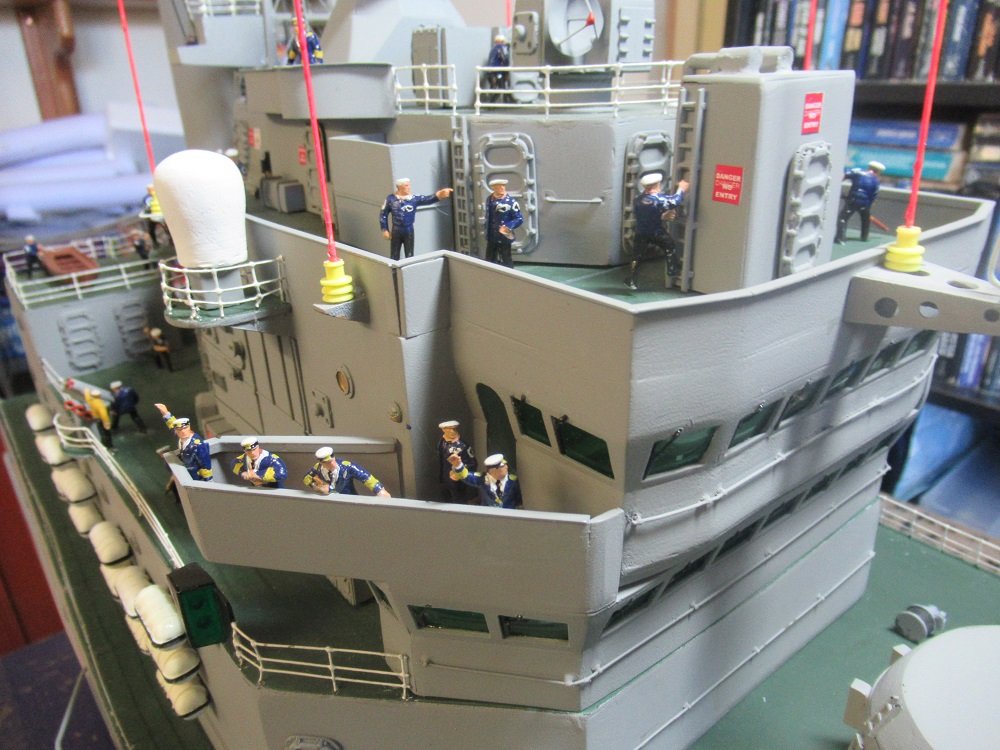

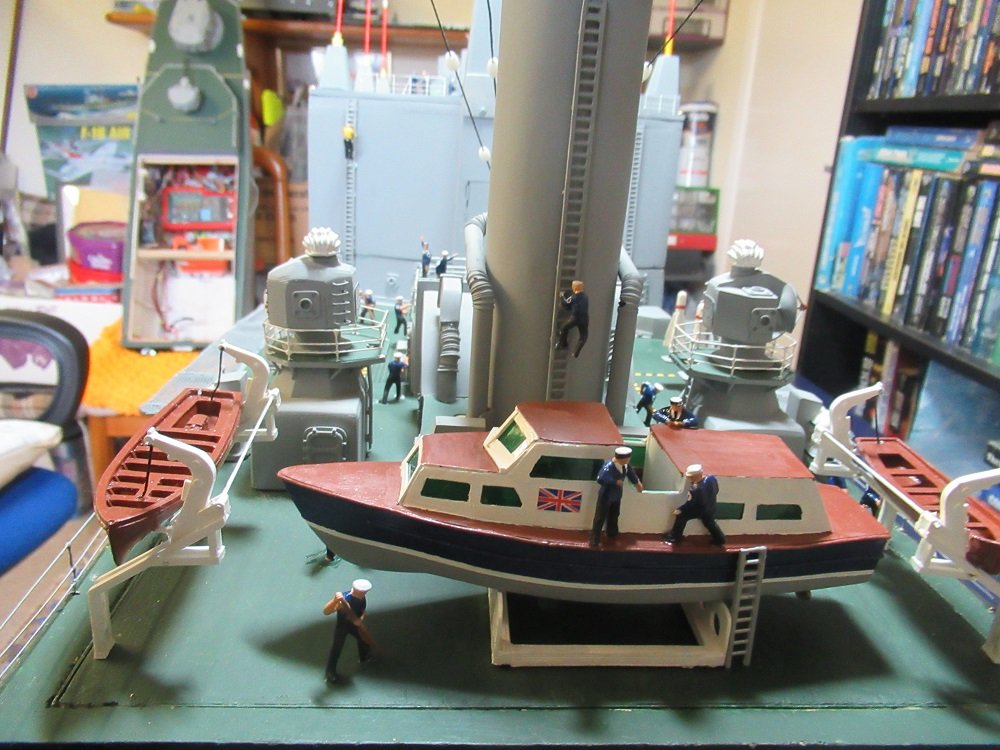

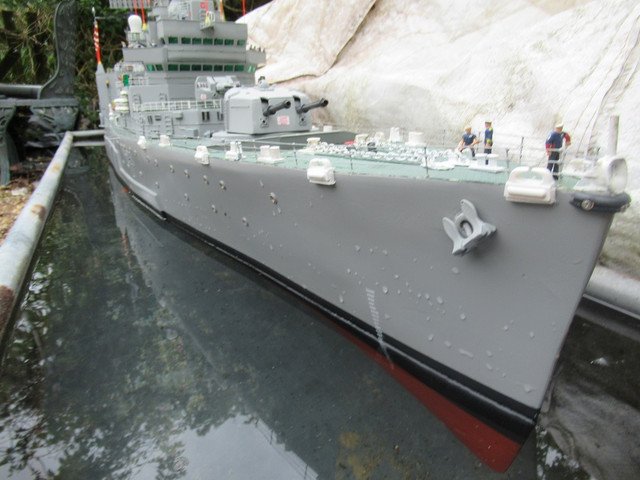

AN Now here the crew figures bein placed on the ship
