1/8 Nike Zeus.

Steven

Active Member
Glue Member
Joined
Dec 7, 2020
Messages
106
IMG_0001 (6).JPG
One of four main plywood fins. To reduce the amount of sanding, filling, priming etc I've chosen to use a papering method.


Steven

Active Member
Glue Member
Joined
Dec 7, 2020
Messages
106

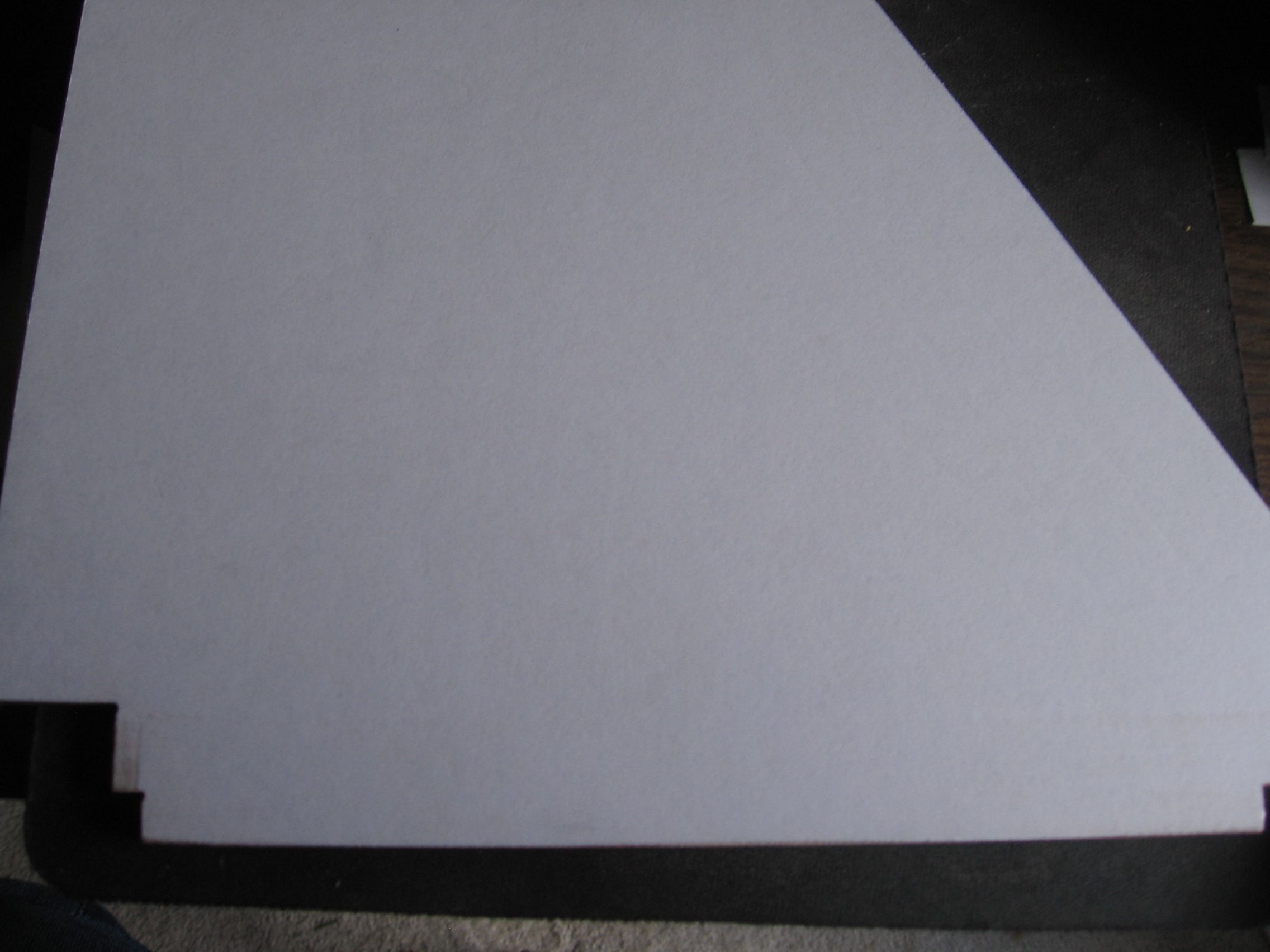

I started using tracing paper with minimal results. Then I switched to regular printing paper. IMG_0001 (7).JPG
Much better. Now I just need to prime. I also switched from using thin CA glue to spray adhesive. I'll run a bead of CA around the edges to seal and fill the edges.


Steven

Active Member
Glue Member
Joined
Dec 7, 2020
Messages
106
I've a total of 12 fins to do in this manner. As I move up the rocket the fins get smaller.


Steven

Active Member
Glue Member
Joined
Dec 7, 2020
Messages
106

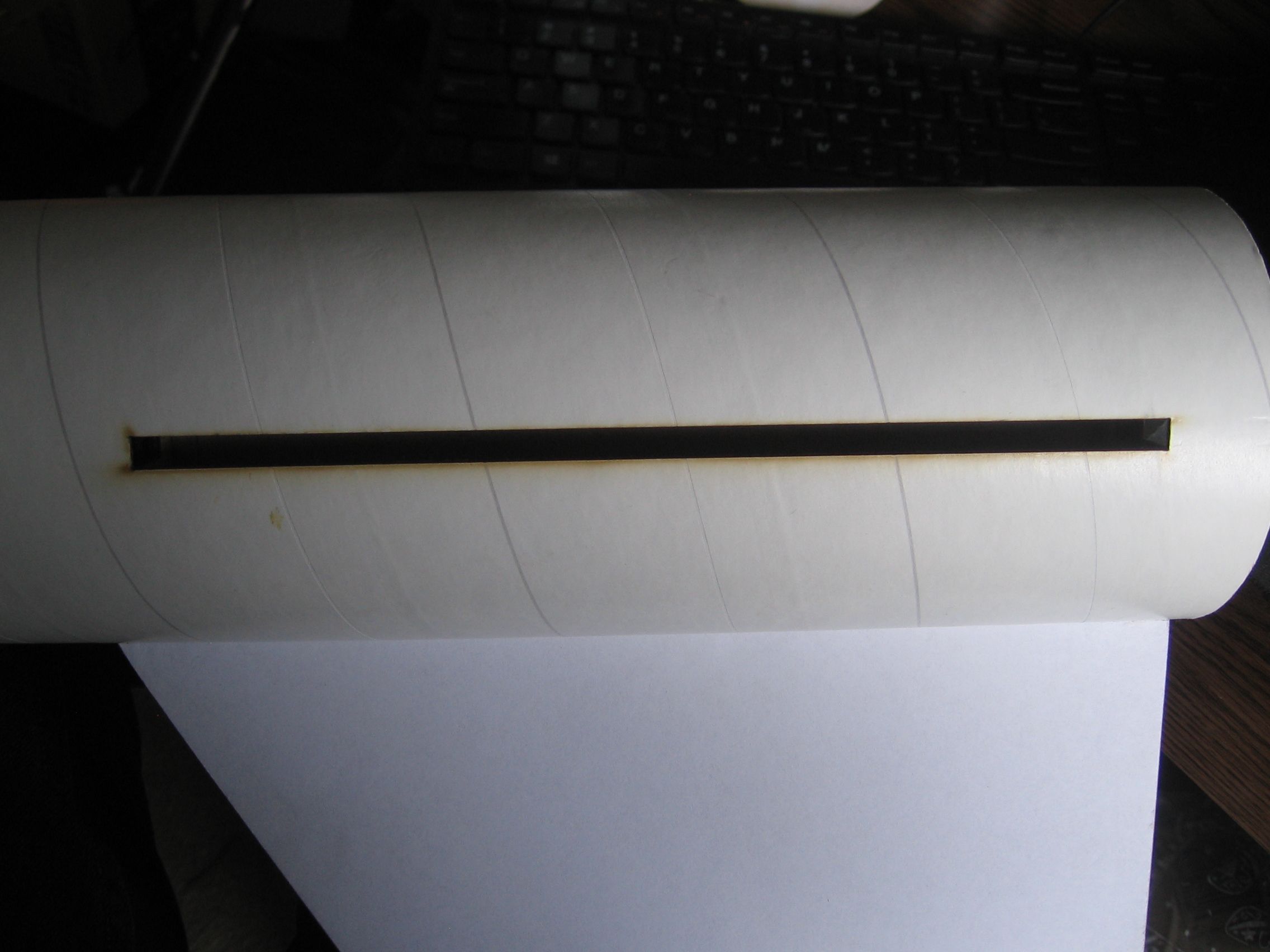

IMG_0001 (11).JPG

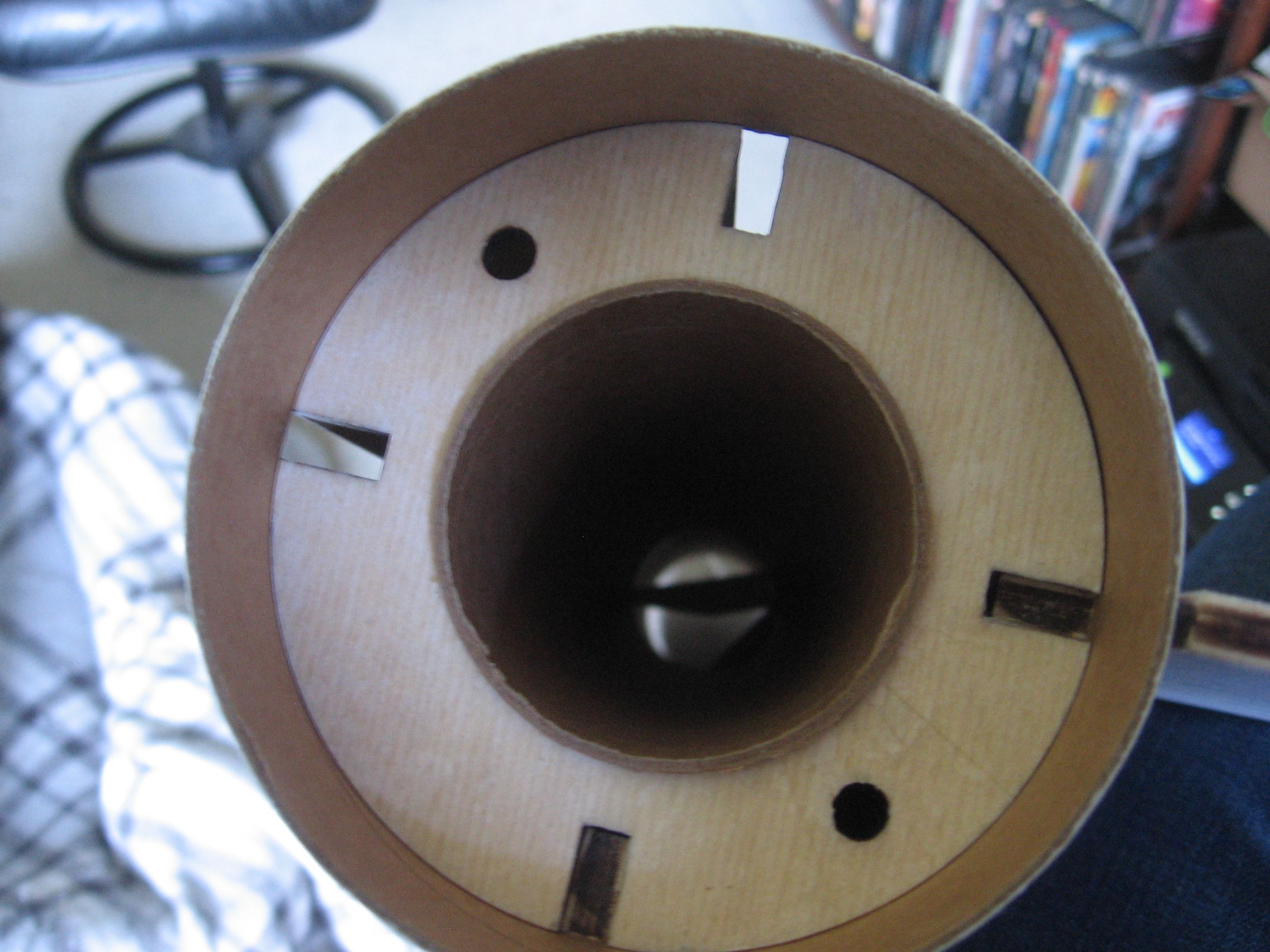

IMG_0002 (8).JPG
This rocket has what is called 'through the wall' fin mounting. Rather than butt gluing them to the body tube, slots were made from the factory so the root of the fins will go through the tube and get epoxied to the motor tube inside.


Steven

Active Member
Glue Member
Joined
Dec 7, 2020
Messages
106
Yes I do. That will be covered later in my builds. The Nike Zeus will fly between 700' to 7000' depending on the motors I use.


Steven

Active Member
Glue Member
Joined
Dec 7, 2020
Messages
106

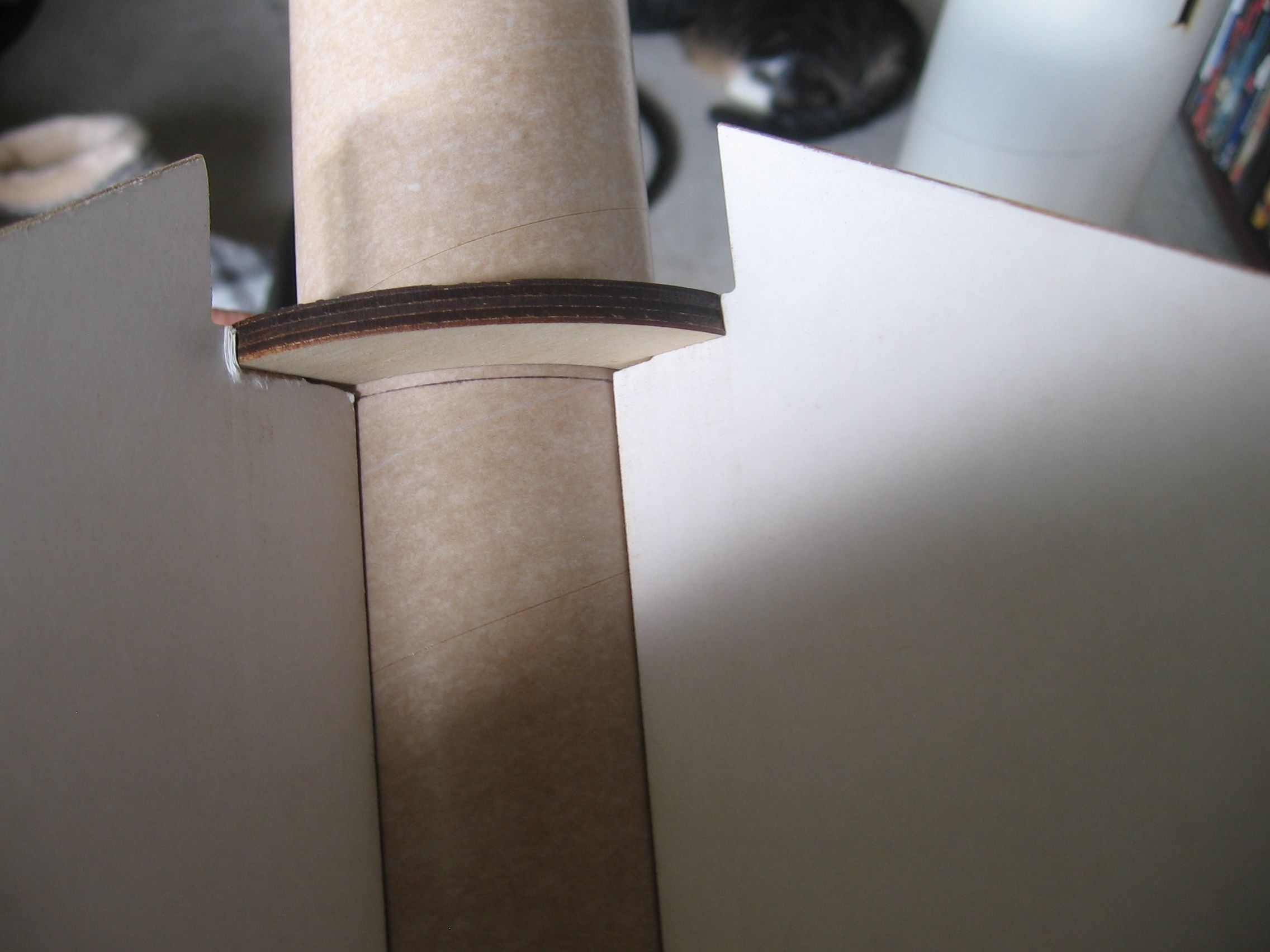

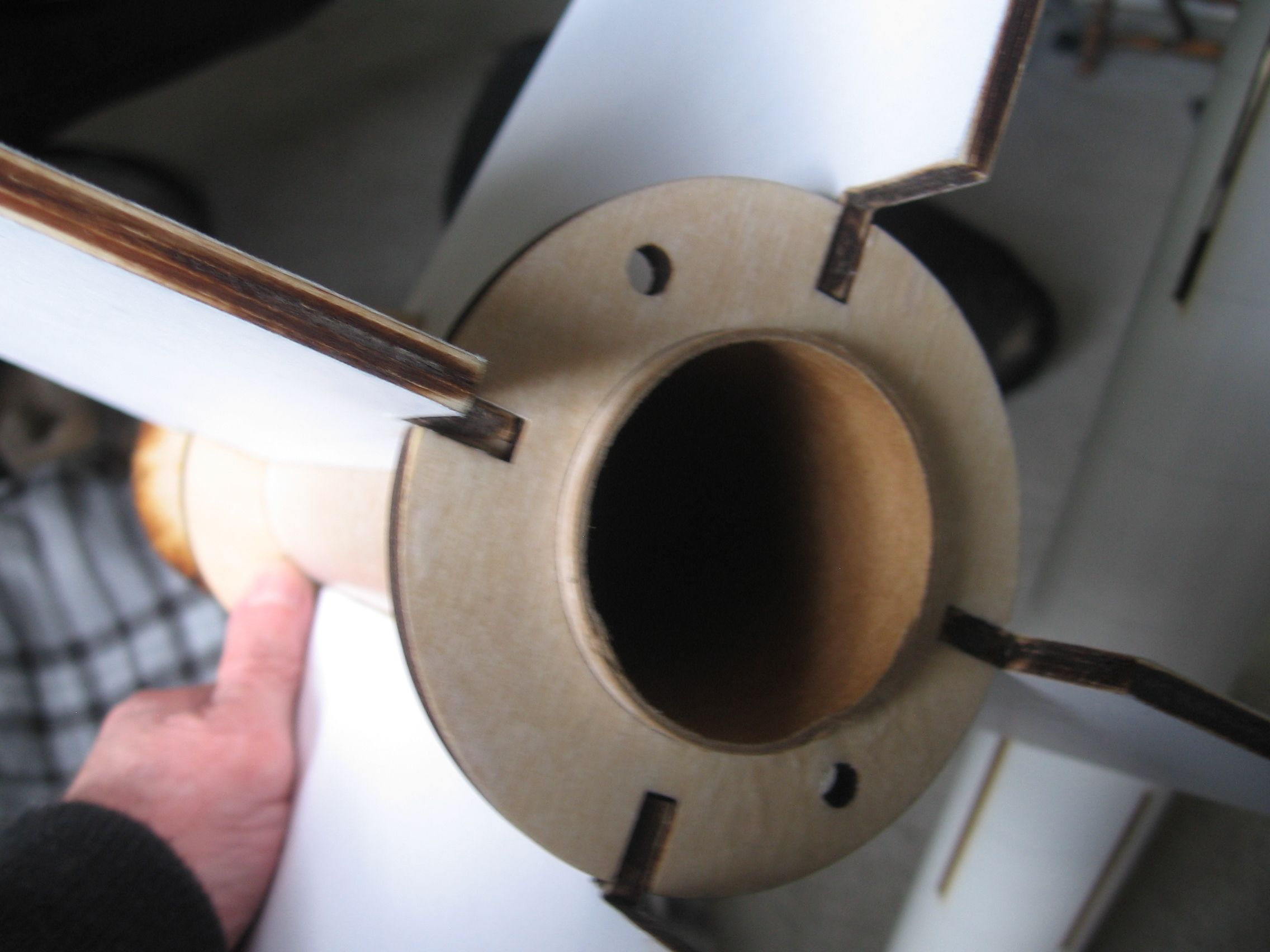

These photos show how the 'through the wall' systems work.


Attachments

  • IMG_0001 (11).JPG
    IMG_0001 (11).JPG
    199.2 KB · Views: 2
  • IMG_0002 (10).JPG
    IMG_0002 (10).JPG
    230.7 KB · Views: 2
  • IMG_0003 (1).JPG
    IMG_0003 (1).JPG
    256.4 KB · Views: 1
  • IMG_0004.JPG
    221.8 KB · Views: 2

Steven

Active Member
Glue Member
Joined
Dec 7, 2020
Messages
106
This video demonstrates what is involved in assembling the fin unit and recovery system. It's a very straight forward build.


Steven

Active Member
Glue Member
Joined
Dec 7, 2020
Messages
106

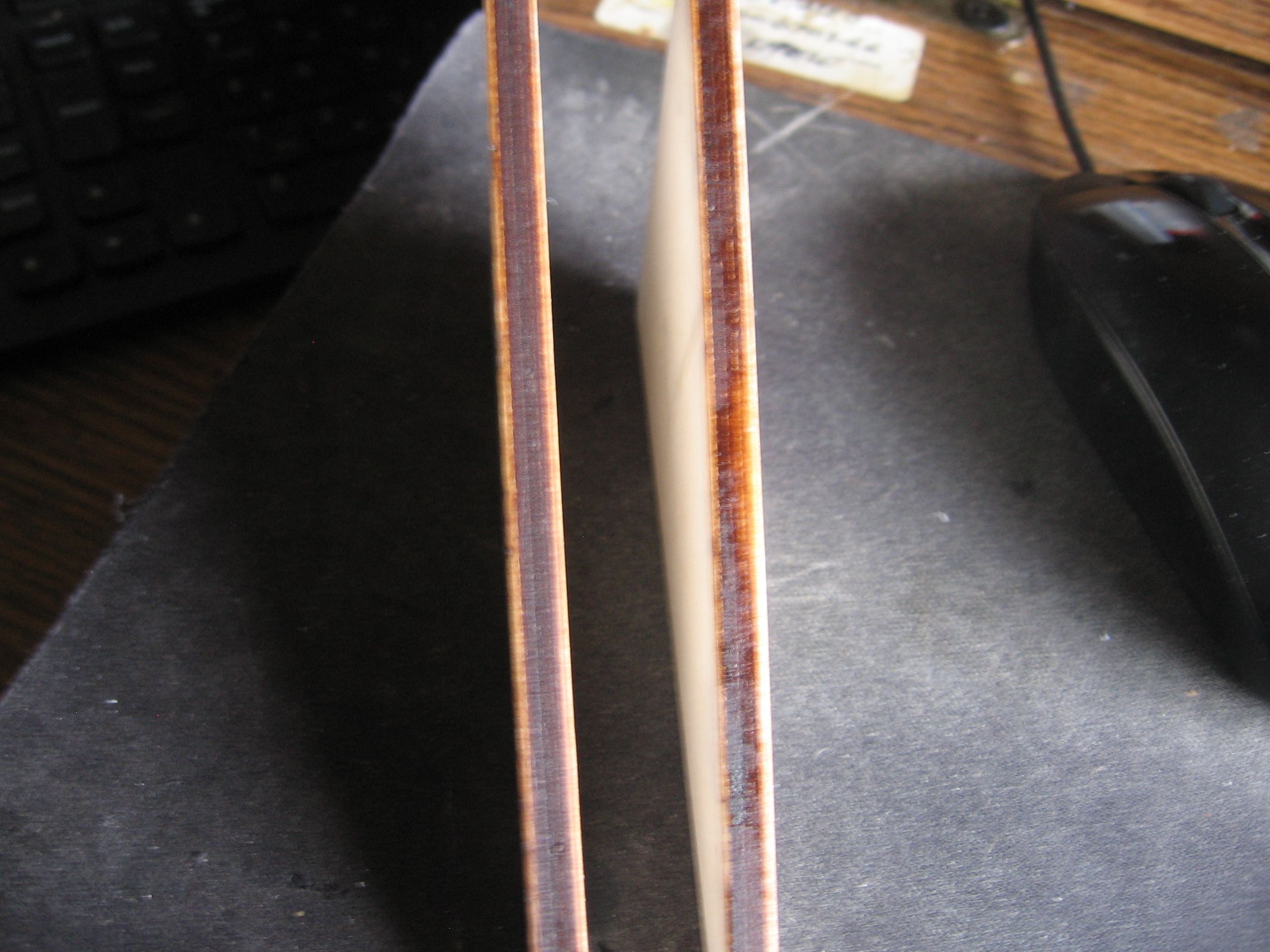

Some of the fins having received a coat of CA glue to seal the wood on these bare edges and to better adhere the paper to the edges.


Attachments

  • IMG_0001 (18).JPG
    IMG_0001 (18).JPG
    371.8 KB · Views: 1
  • IMG_0002 (13).JPG
    IMG_0002 (13).JPG
    441.2 KB · Views: 1
